Years ago Inscale basically developed the idea of the floor scale package. Take a high quality LP7620 NTEP Approved legal for trade 48" x 48" floor scale and calibrate an easy to use LP7510A digital indicator to it. Ship it to the customer and you are ready to weigh. It's affordable and easy to operate. The scale is now an imported model but the concept is still the same today.

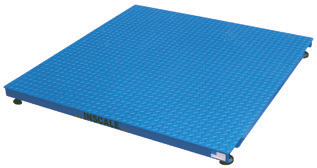

This versatile imported Inscale 4x4 5000 lb. capacity NTEP floor scale is for the widest variety of applications. The structural steel design withstands years of heavy industrial use. We ship standard inscale lp7620 4x4 2.5k ntep floor scale package scales from stock the next day. Optional 4'x4' ramps are available for the IN7620-44-5k.
The scale is calibrated to its digital indicator (5000 x 1 lb.) at the factory and is ready to weigh when you receive it. The scale platform and digital readout are NTEP approved certified legal for trade. The basic keypad functions of the indicator are user friendly and a user manual is included.
All you have to do to set-up the scale is: remove the scale from the shipping pallet and plug the included quick disconnect cable from the scale into the included LP7510A digital indicator and plug the 110VAC power adapter in. The system has already been calibrated at the factory, prior to shipping. In the future, it is a good idea to have your scale system checked and calibrated periodically.
RUGGED - Durable NTEP approved platform design withstands heavy industrial use. Sum capacity of load cells is twice scale capacity. 100% mig welded Structural Painted Steel construction
ALL PURPOSE - Easy to install. Levels with lugs (no shimming). Easy to relocated.
HIGH QUALITY - Uses NTEP shear beam load cells. All structural bracing is structural steel channel iron.
NTEP Approved
Free freight packages are to business addresses only (Zoned Commercial) with a loading dock or fork-lift. All other charges are the buyers responsibility. (Liftgate, Residential, Construction, Military)
| Model |
Platform Size
|
Capacity x Readability
|
| LP7620-3636-5K |
3' x 3'
|
5000 x 1 lbs
|
| LP7620-3636-10K |
3' x 3'
|
10,000 x 2 lbs
|
| LP7620-4848-5K |
4' x 4'
|
5000 x 1 lbs
|
| LP7620-4848-10K |
4' x 4'
|
10,000 x 2 lbs
|
| LP7620-4872-5K |
4' x 6'
|
5000 x 1 lbs.
|
| LP7620-4872-10K |
4' x 6'
|
10,000 x 2 lbs
|
| LP7620-6060-5K |
5' x 5'
|
5000 x 1 lbs
|
| LP7620-6060-10K |
5' x 5'
|
10,000 x 2 lbs
|
Specifications subject to change. We reserve the right to substitute product of equal or greater quality due to availability on this item.
